We receive a lot of email asking how to fix or upgrade their stock system and the answer is simple. JGCParts.com and
the CenterTEC sV.2 OEM style full range plug and play speakers will get the job done.
Applications:
Make: Jeep
Years applicable: 1999 / 2000 / 2001 / 2002 / 2003 / 2004
Models: Grand Cherokee
Jeep Model Variations: Special Edition / Laredo SA / Laredo / Laredo Sport / Limited / Columbia Edition / Overland /
Freedom Edition / Rocky Mountain
Difficulty Level: 1 of 10
Tools needed:
the CenterTEC sV.2 OEM style full range plug and play speakers will get the job done.
Applications:
Make: Jeep
Years applicable: 1999 / 2000 / 2001 / 2002 / 2003 / 2004
Models: Grand Cherokee
Jeep Model Variations: Special Edition / Laredo SA / Laredo / Laredo Sport / Limited / Columbia Edition / Overland /
Freedom Edition / Rocky Mountain
Difficulty Level: 1 of 10
Tools needed:

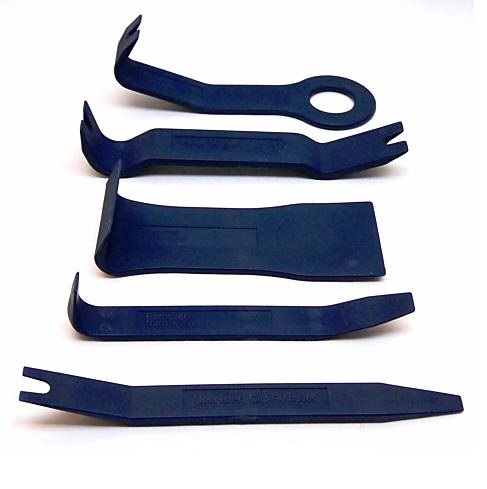

- Installer panel removal tool or other similar tool (example wide putty knife or flat head screw driver)
- Stubby Phillips screw driver (other option is a 7mm or 9/32 wrench or socket and 1/4" ratcheting wrench)
- Needle nose pliers
- Replacement CenterTec sV.2 tweeters for your jeep
That's it - Job Complete! Tune your system, add your favorite music and go. |
| Our Grand Cherokee tweeter and heater solutions are designed to be simple and installer friendly. We have superior products, great prices, and fantastic guarantees. JGCParts.com is your solution for your Grand Cherokee. Make your purchase today and get your Jeep working the way it should. Upgrade today with CenterTEC2 Jeep tweeters and JeepHeater blend door replacements. We don't charge for simplicity. - JGCParts.com - |
1) Pry up on dash cover near the window and
release spring clips retaining the panel.
Lift up and remove cover. Set in a safe place.
release spring clips retaining the panel.
Lift up and remove cover. Set in a safe place.
2) Remove the screws holding down the
speakers. A short screw driver or a 7mm
wrench or socket can be used to remove the
screws.
Unplug and discard old speakers
speakers. A short screw driver or a 7mm
wrench or socket can be used to remove the
screws.
Unplug and discard old speakers
3) Plug in and Install new Plug & Play
CenterTEC sV.2 with factory screws.
CenterTEC sV.2 with factory screws.
| 4) Reinstall upper dash cover. |
If Jeep Grand Cherokee Dash Tweeters is what you need, JGCParts.com is
here to help. Our full size tweeters come complete with direct plug and play
compatibility and no wires to cut. Nobody does it like JGCParts.
here to help. Our full size tweeters come complete with direct plug and play
compatibility and no wires to cut. Nobody does it like JGCParts.

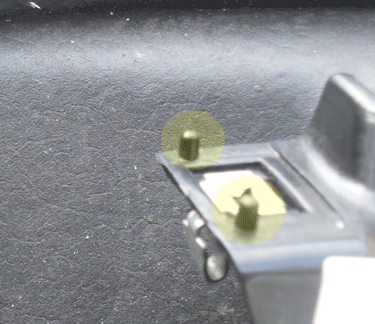

| If you find that the alignment guides in your Jeep's dash board prevent the new speakers from sitting flush, use needle nose pliers to snap them off. You could also cut them off with a pair of dikes. Choosing not to break them off will cause the speaker to sit at an angle, but will not impact sound quality. |
| Each person has his or her own "sweet spot" when it comes to music. What's right for one person sounds like nails on a chalkboard to the next person. Before enjoying your renewed sound system, complete these simple steps. Your new speakers will have different audio properties than your old and damaged units and so now your system must be tuned. 1) Adjust your Bass, Midrange, and Treble to the lowest possible settings 2) Center the Balance and Fader 3) Put on a song or radio station that you enjoy 4) Slowly bring the Treble up to your desired level 5) Slowly bring the Bass up to your desired level ** if equipped, adjust midrange now to your desired level 6) If desired, left-right or front-rear imaging adjustments using the balance and fader should be done now. 7) Volume check now. Lift the volume up and down. Sound Check is now complete. Enjoy! |
Tune Your System
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| |
 |
| Jeep Grand Cherokee dash speaker / tweeter step by step fix and replacement summary |

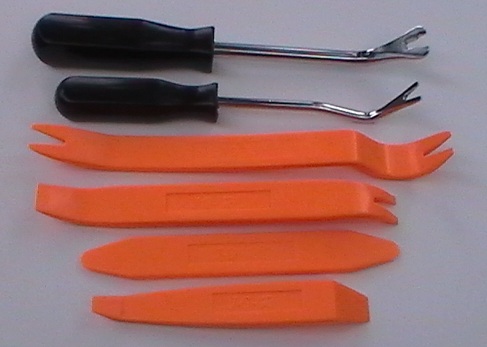

| Choose any Prylon Combo Kit only $19.99 |
